GT Holder for Outer Diameter
Back-milling/Deep Grooving
Product lineup
Common design used for the holders to simplify the use of tools and reduce tool costs!
| Model | Dimensions/H1 | Dimensions/H2 | Dimensions/H3 | Dimensions/ｗ | Dimensions/L | Inventory | Compatible inserts | Wrench | Clamp screw |
|---|---|---|---|---|---|---|---|---|---|
| GT-31 (with scoop) | 19 | *16 (15.8) | 3 | 16 | 150 | ● | Outer diameter back-milling : W05R○○GT Outer diameter deep grooving : W○○R01GT | T-10 | M4.5 |
* The H2 dimensions will be 15.8 mm when the deep grooving tip is attached.
●：In stock
△：Made to order

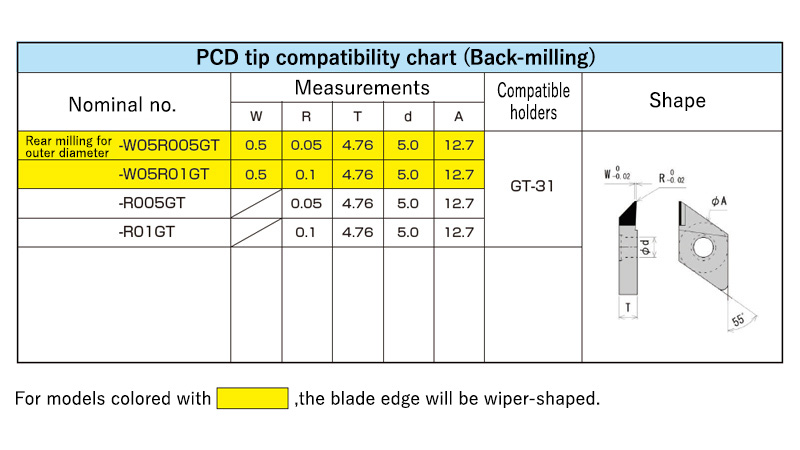

PCD Tip Compatibility Chart(Back-milling)

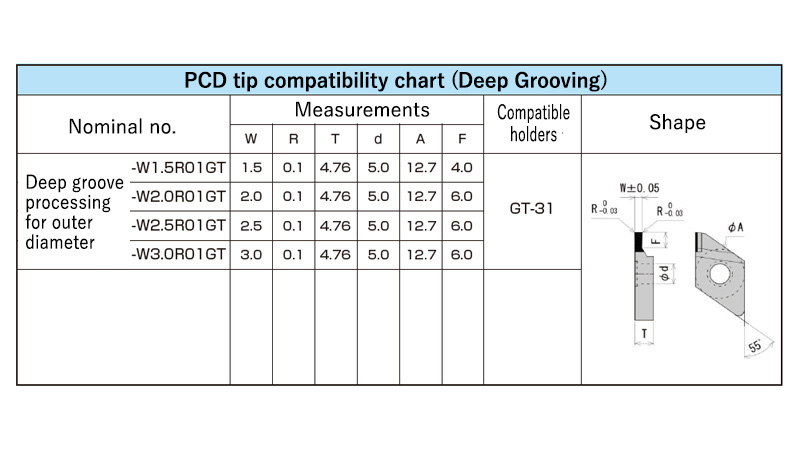

PCD Tip Compatibility Chart(Deep Grooving)
Deep groove tips can be manufactured on a made-to-order basis.
Please inquire with us.
